DIY Pass F5 amp

Post by chua55 on Sat Jul 25, 2009 12:29 am

To those who may have heard, it is none other than the designer himself of Passlabs who has shared this circuit and patience to 'splain the working with pictures and documentation. To get started, here is my casing.



and the commercial product, available at not less than USD 3000.






some specs
SPECIFICATIONS
Gain 20 dB balanced, 20 or 26 dB balanced
Freq. Response - 0.5 dB at 2 Hz, -2 dB at 100 KHz
Power Output 60 watts/ch 8 ohms
90 watts/ch 4 ohms
Maximum Output 30 volts, 8 amps
Distortion (1KHz) 1 % @ 60 watts, 8 ohms
3% @ 90 watts, 4 ohms
Input Impedance 10 Kohm unbalanced
25 Kohm balanced differential
Damping factor 50 nominal
Output Noise 600 uV unweighted
DC offset < 100 mv
Power Consumption 300 watts
Temperature 25 degrees C. above ambient
Dimensions 12 " W x 12" D x 10.5" H
Shipping Weight 60 lb.

and the documents here

http://www.firstwatt.com/downloads/F5%20Power%20Amplifier%20for%20PassDIY.pdf


chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by kowtim on Sat Jul 25, 2009 11:31 am

Hi Chua

Looks like a fabulous project! Thanks for sharing it with us. Look forward to seeing more shots as the work progresses. The current and voltage ratings make it an ideal amp for my Quad ESL's.

What speakers will you be using it with?

Regards
study

kowtim
Regular
Regular

Number of posts: 84
Age: 47
Location: KL
Registration date: 2009-05-20

Back to top Go down

Re: DIY Pass F5 amp

Post by kowtim on Sat Jul 25, 2009 11:46 am

Hi Chua

I had a read of the document you linked to. I loved this bit by Mr. Pass...

Audiophiles are often concerned about the effects of capacitors in audio circuits, but a quick examination of the schematic will put your concerns to rest.

Simply Awesome. And a brilliant technical writer. Too bad our fellow Malaysians generally don't like to learn how to build things and mod things Chua as my Learning to Mod Interest Check thread showed us. It would have made a truly fabulous DIY group build project. Not too hard... and a member here has a solution for the hardest bit which I think you have purchased one... the enclosure...

Regards
study


Last edited by kowtim on Sat Jul 25, 2009 11:49 am; edited 1 time in total

kowtim
Regular
Regular

Number of posts: 84
Age: 47
Location: KL
Registration date: 2009-05-20

Back to top Go down

Re: DIY Pass F5 amp

Post by cmboy on Sat Jul 25, 2009 11:47 am

See Nelson Pass philosophy of continuing using brute PSU with normal industrial rectifier. He doesn't believe in fast recovery types for power amps.

cmboy
Frequent Contributor
Frequent Contributor

Number of posts: 1270
Age: 34
Location: The Eagle's Nest
Registration date: 2009-03-11

Character sheet
Source(s):
Amplification:
Speakers:

Back to top Go down

Re: DIY Pass F5 amp

Post by joeling on Sat Jul 25, 2009 12:36 pm

Say, can u point me to links to the PCB & case ? Thanks man.

Regards,
Joe Ling

joeling
Frequent Contributor
Frequent Contributor

Number of posts: 364
Age: 41
Location: Malaysia
Registration date: 2009-06-25

Character sheet
Source(s): Aurender, Bergmann, AMR, DCS
Amplification: ARC
Speakers: ProAc

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Sat Jul 25, 2009 5:01 pm

Nelson is also known as PAPA in diyaudio. He is prolific and very unselfish in sharing, even for the trivial petty things.

The other other guy in the thread is John Curl. If you want some good preamp, check his thread.

You should look at CViller (first choice) if not Peter Daniel.

http://www.diyaudio.com/forums/showthread.php?s=&threadid=134554

As for the case, check hifi4sale thread. look for PCH1 or PCH2.

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by kowtim on Sat Jul 25, 2009 5:32 pm

Hi Chua

When you mention Mr. Curl, are you talking about his blow torch preamp, or something else he offers DIYers?

Do you have a link to the Daniels preamp? Thanks!

Regards
study

kowtim
Regular
Regular

Number of posts: 84
Age: 47
Location: KL
Registration date: 2009-05-20

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Sun Jul 26, 2009 12:33 pm

Yeah. that's the blowtorch preamp.

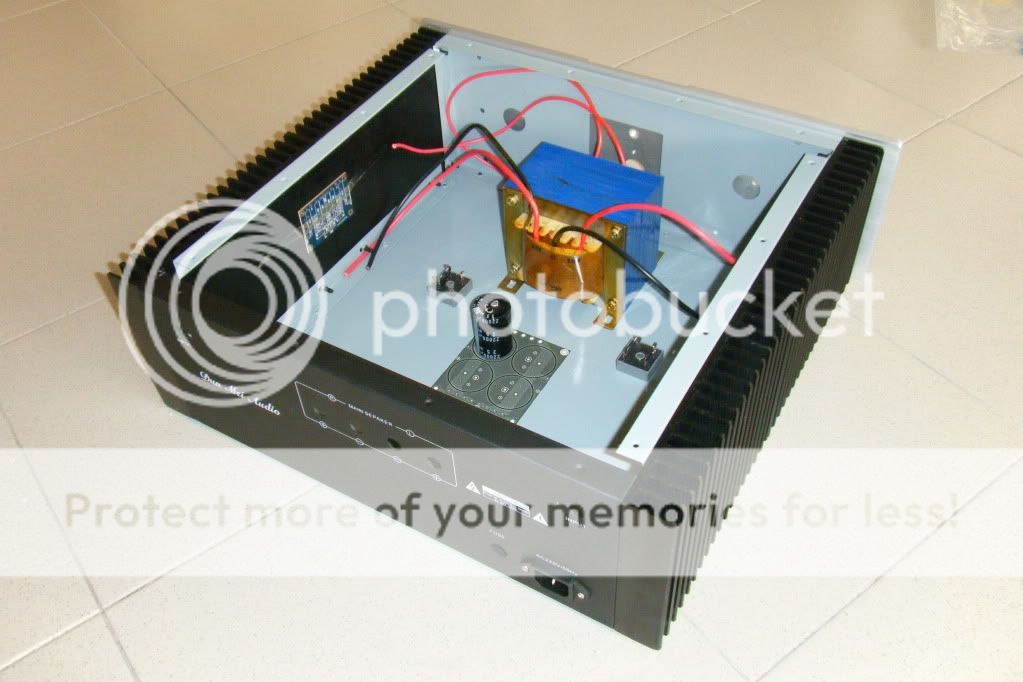

Here is the work in progress on F5.



chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by moppy on Wed Aug 05, 2009 2:57 pm

Hmm, another PassDiy fans. Glad to meet you.

Well, I hv completed one of passdiy many yrs ago. I hv made the Son of Zen during my school days. I'm not with any electronic background and all the efforts were from my friends. I only did the assemble parts and itching. My friends help me did the soldering.

The quality I used most were audio grades especially capacitors. Although the power amp. is just only around 10 watts being achieved but the quality of the sound is very good.

moppy
Club Member
Club Member

Number of posts: 27
Age: 34
Location: Ipoh
Registration date: 2009-03-05

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Tue Aug 18, 2009 11:24 am

Hi Chua - How is your f5 project progressing? I have just started on acquiring the parts for the pass f5/B1. Perhaps we can compare notes when I have my parts in-place and assembled.

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by kakibook on Tue Aug 18, 2009 9:29 pm

this is a interesting project to do. good for beginners too.

kakibook
Dealer\Reseller\Trader\Service Provider
Dealer\Reseller\Trader\Service Provider

Number of posts: 297
Age: 44
Location: Selangor
Registration date: 2009-07-19

Back to top Go down

Re: DIY Pass F5 amp

Post by mugenfoo on Wed Aug 19, 2009 12:04 am

@chua55

Very impressive... hats off to you.

If u feel the horniness to build another clone amp of some famous brand, i got the schematics for a clone Krell KSA-50 amp.

Pls PM me if u want the DIAGRAMS and are keen to build one.

mugenfoo
Frequent Contributor
Frequent Contributor

Number of posts: 2665
Age: 38
Location: All over
Registration date: 2009-04-04

Character sheet
Source(s): Technics Compact-Cassette Deck
Amplification: DIY Kit 15Watt
Speakers: Pasar Road Special.

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Wed Aug 19, 2009 12:25 am

mthoi wrote:Hi Chua - How is your f5 project progressing? I have just started on acquiring the parts for the pass f5/B1. Perhaps we can compare notes when I have my parts in-place and assembled.

You have your ps board using 8 caps (with 35mm max dia)? I am looking for one. if not I will just solder point to point. I am using Nichicon, could have used RIFA white sausage if not $$$. Most of the resistors I use PRP, Holco. heard Welwyn is good.

the F5 slows as I was building the tda1541a, adding shunt reg to the dac and receiver chips so that I have dual stage regulation. also modding the output stage to pass D1 discrete single ended. will try the charge transfer power supply (works like battery supply, dark background).

Krell KSA50 is a common diy project, and there is a little Krill too. Among the diy amp, passion burns for Pass amp.

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Wed Aug 19, 2009 5:11 pm

Hi Chua, I got the PSU's PCB board from e-bay (Jims_audio). There are 2 stores (probably more) selling Pass f5 parts - Tubeshunter and Jims_audio (do a store search for "pass" of "f5" in e-bay). Tubeshunter has a full kit for the PSU but a bit pricy.

I got the f5 and B1 kit from Jims_audio in e-bay. The f5 comes with all the parts but the B1 is a bare PCB - some effort in sourcing for the parts. Got mine mostly from Parts Connexion. I have not decide on the signal parh capacitors for the B1 - probabally use Mundorf ZN (octave) or Obbligato (diy-hi-fi supply).

I find it cheaper to source for a PSU kit (@RM 70) in e-bay and use the kit's caps (4 units of Rubycon 10,000uf, 50v) for the f5 PSU. That works out to an average of RM17.50 per capacitor - I think it is selling about RM 37 per piece in other e-bay shops.

I am still looking for a enclosure, a 300VA toroidal x'former (25V-0-25V) and 2 heatsinks - prefereably from a local supplier - do you know of any electronic shop that carry these items? Tx

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Wed Aug 19, 2009 7:17 pm

It depends on whether you want to go for dual mono or single. I got my EI 400VA 18-0 18-0 Tx from Multicare transformer from JP and there is another one in Kepong who can do it too.

As for the casing, try PCH 1 or PCH2 from the hifi4sale thread under generic hi-fi chasis. F5 needs a really big heatsink.

I will post some photo shoot of some of the completed F5 by others.


Last edited by chua55 on Thu Aug 20, 2009 4:52 pm; edited 1 time in total (Reason for editing : edited tx sec output)

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Thu Aug 20, 2009 4:41 pm

Alas, the transformer for the job should be 2x18V ac on the secondary output. check the correct BOM here.

http://www.diyaudio.com/forums/showpost.php?p=1823039&postcount=103

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Thu Aug 20, 2009 10:09 pm

Chua - 2 secondaries of 18-0, 18-0 is ok. If you need the PSU schematics, PM me.

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Fri Aug 21, 2009 12:03 am

here are more photo. [sometimes I just cant resist looking at it for the second glance]










chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Tue Sep 15, 2009 10:49 pm

Hi Chua - how is the progress of your F5? I have just assembled the PSU unit and is stable at +/- 25.11V without load. I think it is acceptable from all the comments in diyaudio forum.

I would connect the F5 boards tomorrow - will update with pics when done.

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by wabun on Wed Sep 16, 2009 2:10 pm

look aside, hows the sound ?

wabun
Frequent Contributor
Frequent Contributor

Number of posts: 342
Age: 37
Location: Ipoh
Registration date: 2009-03-02

Back to top Go down

Re: DIY Pass F5 amp

Post by kakibook on Wed Sep 16, 2009 11:46 pm

Welcome to the neutral and transparent sound. That is the general comments after power up the unit as reported by most of the guys who built it.

kakibook
Dealer\Reseller\Trader\Service Provider
Dealer\Reseller\Trader\Service Provider

Number of posts: 297
Age: 44
Location: Selangor
Registration date: 2009-07-19

Back to top Go down

Re: DIY Pass F5 amp

Post by moppy on Thu Sep 17, 2009 11:08 am

I'm doing the same project too

moppy
Club Member
Club Member

Number of posts: 27
Age: 34
Location: Ipoh
Registration date: 2009-03-05

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Thu Sep 17, 2009 11:22 am

Powered-up the boards yesterday nite. Made some mistakes and overloaded (turned the bias too high) one channel - probably damaged the jfets since it is immediately hot on power-up. Moral of story - curb enthusiasm and dont work when tired! Ordered new replacement jfets.

The other channel seems to be OK - got the bias going. Will continue testing (with resistor load and cheap speakers) before hooking-up to speakers.

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Thu Sep 17, 2009 11:26 am

Anyone has a pair of 2sk170BL & 2sj74BL handy and for sale? Pls PM me. Tx

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by moppy on Thu Sep 17, 2009 2:26 pm

mthoi, I'm waiting mine from ebay.. could hv few extra if i didn't burn it

moppy
Club Member
Club Member

Number of posts: 27
Age: 34
Location: Ipoh
Registration date: 2009-03-05

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Thu Sep 17, 2009 3:28 pm

I bought some, burn a few, left a tiny no. I will check if I have enuf for that. do u want to consider buying 20 pairs and match them to get the correct Igss - Vds.

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Fri Sep 18, 2009 11:18 am

Hi Chua, Would be nice if you can sell me 2 pairs of 170/74 for temporary measure. It is Ok if it is unmatched. I just want to do some "work" over the raya break. Pls call me 012 2236517, if you have any to spare.

I have placed an order for 4 pairs matched 170/74s on e-bay. Not sure if thery would be really "matched" as claimed.

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Sun Sep 20, 2009 1:44 pm

Hope you can get it up running in stereo. the works are wonder and do post some picture to poison us.

we have Kuching F5 guys on the way too.

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by mthoi on Sun Sep 20, 2009 9:35 pm

Hi Chua - tx for the 2 pairs of 170/74. I found out that it is one of the MOSFETS that was actually faulty (IRFP240). Ordered from RS and hopefully it can be delivered after Raya. I have made some progress in tuning the bias of both F5 channels using the pair of working mosfets.

The latest development is that I have hooked up the single channel to a pre-amp/CD and a cheap RM35 Pasar Rd speaker. It produces sound - and quite "good" as well! All very exciting!

I would test a bit longer before I connect the F5 to my Harbeth 3PES. I would post some pics when I get the F5 fully up and running.

mthoi
Frequent Contributor
Frequent Contributor

Number of posts: 225
Age: 51
Location: Petaling Jaya
Registration date: 2009-02-26

Character sheet
Source(s): Marantz SAKI Pearl, Michell Gyro, Garrard 401, Lenco L75, Technics SL1200II
Amplification: C3o/300b + C3m/300b PP biamp, 26 Preamp, 76 Preamp + 45/845, Quad 34/606
Speakers: Harbeth SHL5, Altec A7 288-8G/1505B VOTT + JBL 2404H, Tyler Acoustics + Altec 288/Jabo Horns

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Tue Oct 06, 2009 11:25 pm

Hi MTHOI,

Good news on your F5. Looks like u got it done first, perhaps the first in Malaysia too.

do present your photo and poisons us with the neutral sound of DIY F5.

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by kowtim on Wed Oct 07, 2009 12:46 pm

Hi Guys

For those venturing into the exciting world of solid state DIY amplification modification, a few words of warning would be in order.

It is very important, no... it's absolutely crucial for one to check after performing ANY internal work in an amplifier that there is no DC voltage present at the amplifiers output...i.e. the speaker terminals.

When an amplifier is working correctly, you should be able to measure a varying AC voltage output present at the speaker terminals. But when you measure for DC voltage at the output, there should ideally be NONE.

If there is SOME DC, then what happens is that your speakers voice coils will eventually burn out. You then need to replace your drivers. This can be extremely expensive.

I learnt this the hard way back in the early 90's when I built my first pair of Naim NAP 135 monoblocks. One simple connection error on my part resulted in some DC voltage present on the output of the amplifiers.

I never paid attention to the faint burning smell that could be detected shortly after switching them on as they appeared to be working correctly and everything was sounding great. End result, 5 minutes later I had a ruined pair of Linn Kans which I personally went to the UK to select and hand carry back. But that's how we truly learn.

DC on the output of any solid state amplifier is deadly to your speakers. And headphones too. I hope this will save someone from some misery!

On a happier note, as chua55 says, some new pictures would be most welcome indeed MTHOI !

kowtim
Regular
Regular

Number of posts: 84
Age: 47
Location: KL
Registration date: 2009-05-20

Back to top Go down

Kuching F5

Post by kp93300 on Thu Jan 14, 2010 4:37 pm

I just completed the F5 after burning 3 mosfets! This is my learning lessons.
AS usual, I was not careful with the trimpot during adjustment. There is not much room for error.
Those building it, please start with the lowest R across the gate and source of the mosfet when you start powering it up.
I bought the chasis from one of the posting here and I wish the heat sink is about 20 % bigger. I have only adjust the bias up to 0.54V . The recommended bias id 0.6 V. After powering up in a non aircon room for 1 hour , the heatsink can only be touched for about 6 seconds.
The Sound
I am using the promitheus DAC and there is no capacitor in the DAC and the amp in the signal path.
The background sound is really quiet and very very transparent. bass is surprising deep and tight in the OB5 speaker kit from GR research.
Vocal is tactile and the illusion of musicians in the room is very real.
Sound stage is also very good.
cheers
kp93300

kp93300
Regular
Regular

Number of posts: 96
Age: 58
Location: kuching
Registration date: 2009-07-20

Back to top Go down

Re: DIY Pass F5 amp

Post by chua55 on Sun Jan 17, 2010 8:06 pm

so it runs super hot. look like it is better to use the PCH 3 / PCH 4 series.

I notice investing amp really give a lot of return.

chua55
Frequent Contributor
Frequent Contributor

Number of posts: 352
Age: 43
Location: cheras
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by chchyong89 on Mon Jan 18, 2010 11:10 am

stupid suggestion: install a fan on it? Razz

Although it look fugly but do help a lot.

and yea, chua, where did you get your 2sj108 and 2sk370? Surprised

chchyong89
Frequent Contributor
Frequent Contributor

Number of posts: 135
Age: 25
Location: cyberjaya
Registration date: 2009-03-08

Back to top Go down

Re: DIY Pass F5 amp

Post by kp93300 on Mon Jan 18, 2010 4:24 pm

How to install a fan without noise? It is so quiet and no hiss from the speaker at idle !
thank you

kp93300

kp93300
Regular
Regular

Number of posts: 96
Age: 58
Location: kuching
Registration date: 2009-07-20

Back to top Go down

Re: DIY Pass F5 amp

Post by kp93300 on Mon Jan 18, 2010 4:31 pm

Last nigth a bass player came to listern and commended positively on the bass reproduction .
He performs frequently at dinner funtions and likes the bass the vocal very much.
I am amazed that that it is only about 20 W !
kp93300

kp93300
Regular
Regular

Number of posts: 96
Age: 58
Location: kuching
Registration date: 2009-07-20

Back to top Go down

Re: DIY Pass F5 amp

Post by jazzy939 on Mon Jan 18, 2010 5:17 pm

Pretty encouraging comment! Very Happy

jazzy939
Frequent Contributor
Frequent Contributor

Number of posts: 189
Age: 52
Location: Bolehland-->Bodohland
Registration date: 2009-04-19

Back to top Go down

Re: DIY Pass F5 amp

Post by chchyong89 on Mon Jan 18, 2010 7:29 pm

jazzy let's F5 together.... Basketball

chchyong89
Frequent Contributor
Frequent Contributor

Number of posts: 135
Age: 25
Location: cyberjaya
Registration date: 2009-03-08

Back to top Go down

Re: DIY Pass F5 amp

Post by kakibook on Wed Jan 20, 2010 9:46 am

I am using 2sk170BL and 2sj74BL from HOHODIY before they close shop. I used a lot of these for the Current mirrors of the TDA1541a and did manage to burn a few of them.

many guys have actually put a fan using a 12 V computer fan. however, it is better you relook at the biasing to reduce the heat.

kakibook
Dealer\Reseller\Trader\Service Provider
Dealer\Reseller\Trader\Service Provider

Number of posts: 297
Age: 44
Location: Selangor
Registration date: 2009-07-19

Back to top Go down

Re: DIY Pass F5 amp

Post by Nounours18200 on Tue Jun 14, 2011 12:32 am

I got the PSU's PCB board from e-bay (Jims_audio). There are 2 stores
(probably more) selling Pass f5 parts - Tubeshunter and Jims_audio (do a
store search for "pass" of "f5" in e-bay).

Do you know if Tubeshunter has good quality PCB and/or is trustable vendor ? I would prefer to buy
the PCB from the DIYaudio Store, but Tubeshunter also has a full kit
with MATCHED pair of Fets, and this would save me a lot of time...
http://cgi.ebay.fr/DELUXE-F5-STEREO-FET-MOSFET-AUDIO-POWER-AMPLIFIER-KIT-/380241064394?pt=LH_DefaultDomain_0&hash=item58882231ca

So the second question is: do you know a place where we can get MATCHED fets for the F5 ??

Many thanks !

Nounours18200
New Member
New Member

Number of posts: 2
Age: 53
Location: France
Registration date: 2011-06-14

Back to top Go down

Re: DIY Pass F5 amp

Post by Nounours18200 on Tue Jun 28, 2011 3:30 am

Just for info: I finally bought the PCB from DIYaudio store, and the transistors friom Tech-diy.
Starting the assembly...

Nounours18200
New Member
New Member

Number of posts: 2
Age: 53
Location: France
Registration date: 2011-06-14

Back to top Go down

Re: DIY Pass F5 amp

Post by zyker on Wed Jun 29, 2011 6:14 pm

Nounours18200 wrote:Just for info: I finally bought the PCB from DIYaudio store, and the transistors friom Tech-diy.
Starting the assembly...
Looking forward to your build. Please update us with some photos later Cool

zyker
New Member
New Member

Number of posts: 8
Age: 25
Location: Kedah, Perak, KL
Registration date: 2011-05-09

Character sheet
Source(s):
Amplification:
Speakers:

Back to top Go down

View previous topic View next topic Back to top


Permissions in this forum:
You cannot reply to topics in this forum
