Acoustic Energy ProSat Active Near Field Studio Monitor Speaker (New)

View previous topic View next topic Go down

Acoustic Energy ProSat Active Near Field Studio Monitor Speaker (New)

Post by HiFiLab on Tue Apr 02, 2013 7:14 am










這款Pro Sat主動式迷你喇叭,是AE專為錄音室或個人音樂工作室的近場聆聽需求而設計,它只有22公分高,很適合放在混音主控台或桌面上使用,近年來數位播放大行其道,像Pro Sat這樣的主動式迷你喇叭又有新的需求,那就是直接搭配電腦與USB DAC,就是一套極為方便的桌面或小空間的聆聽系統。
高、低音分別驅動


Pro Sat小歸小,它的高音也和AE1 mkIII SE、Referenec 2、AE22…等其他型號一樣,使用1吋Ring Raditator環狀輻射高音單體。比較特殊的是,Pro Sat用的低音單體是130 mm鋁質振膜單體,這比AE1 mkIII SE、AE1 Classic、Aelite 1用的110 mm單體更大,而這3款喇叭的體積都比Pro Sat大了不少。為何這樣配置?我想原因應該和AE22 Passive類似,Pro Sat也是密閉式音箱,低頻延伸較為受限,因此使用口徑大一點的低音單體,有助於更好的低頻延伸。另外,較大的單體也能提供更好的效率,讓擴大機工作起來更輕鬆。


Pro Sat內建兩部擴大機模組,分別驅動高音與低音,推高音的是25瓦,低音則是50瓦。既然是專業用途的主動式鑑聽喇叭,Pro Sat當然具備XLR輸入端子,另外也提供一組RCA輸入,方便一般用家使用。針對錄音室的多重需求,Pro Sat也有一些調整功能,像是輸入靈敏度有0db、-3dB與-6dB三段,可以因應前端器材的輸出電平做調整。高頻調整有+2db、0dB、-2dB三檔,低頻則有Extended與Normal二段,這些功能一般用家也用得上。
搭配超低音錦上添花


從規格上來看,Pro Sat的頻率響應為100Hz~40kHz ± 3dB,低頻延伸能力限制頗多,這是因為AE在設計Pro Sat時,就要它搭配Pro Sub主動式超低音喇叭一起使用,兩者各自負責不同頻段,結合成一個完整的播放系統。AE的著眼點在於目前有越來越多錄音室開始處理多聲道素材,Pro Sat加Pro Sub就可以滿足他們的需要,當然一般用家也可以如法炮製,用Pro Sat加Pro Sub組2.1聲道或5.1聲道系統,一舉滿足聽音樂與看電影的需求。實際聆聽時,雖然手邊沒有Pro Sub,我另外拿一部8吋主動式超低音搭著聽了一下,Pro Sat原本非常厚實的中頻、極為紮實的密度,就多了輕鬆餘裕的感受,這種錦上添花的感覺,真是一聽就上癮

聆聽時搭配的前級有二部,一是Klimo真空管前級,另一台是Audionet Pre 1。Klimo清甜淡雅,聲底清澈,音像小,空間感較開闊,Audionet Pre 1則溫厚濃郁,音像飽滿紮實,能量充沛。在小空間中我會選Klimo,但U-Audio是大聆聽室,因此最後我選擇用Pre 1搭配。
超越體積的厚實度
為了還原Pro Sat是給近場聆聽的設計初衷,我在大聆聽室裡也模擬近場的擺法,聆聽位置距離Pro Sat約1.5米。播放阿勞演奏的蕭邦圓舞曲,小小的Pro Sat居然表現出不錯厚重感,鋼琴顆粒飽滿緊實,絕非細小的類型。不過,從另一方面來看,Pro Sat雖迷你,倒也不是輕快亮麗的類型,而是非常注重中頻表現,這樣的聲底,對於近場聆聽人聲、弦樂、鋼琴…等,真是在適合不過。
因此我接著聽Rudolf Koelman演奏帕格尼尼24首隨想曲,Pro Sat雖然較為欠缺弦樂的光澤與滑順甜膩的質地,卻很能表現音樂中的細節,像是此一小提琴炫技曲中的各種運弓變化,以及強弱輕重的對比,都一清二楚地如實呈現,不愧為鑑聽專用喇叭。最後我播放2011年的維也納新年音樂會CD,Pro Sat把交響樂應該要有的厚實感表現得很好,因此我可以感受到史特勞斯圓舞曲的韻律感,極富彈性與動能,如果這時再將超低音打開,音場下盤則變得更為完整,而且用更小的音量,就可以播出同樣的規模感與厚實度,聽感也變得更為輕鬆愉悅,也更耐聽了。Pro Sat雖小,但帶來的滿足並不輸於它的眾家兄弟,更棒的是,連擴大機都一併省掉了。
器材規格


形式:2單體2音路密閉式主動鑑聽喇叭
使用單體:25 mm Ring Raditator高音×1,130 mm鋁合金中低音×1
頻率響應:100Hz~40kHz ± 3dB
擴大機功率:低音50瓦,高音25瓦
輸入靈敏度:300 mV
尺寸:220×150×180mm(H×W ×D)
重量:4 kg

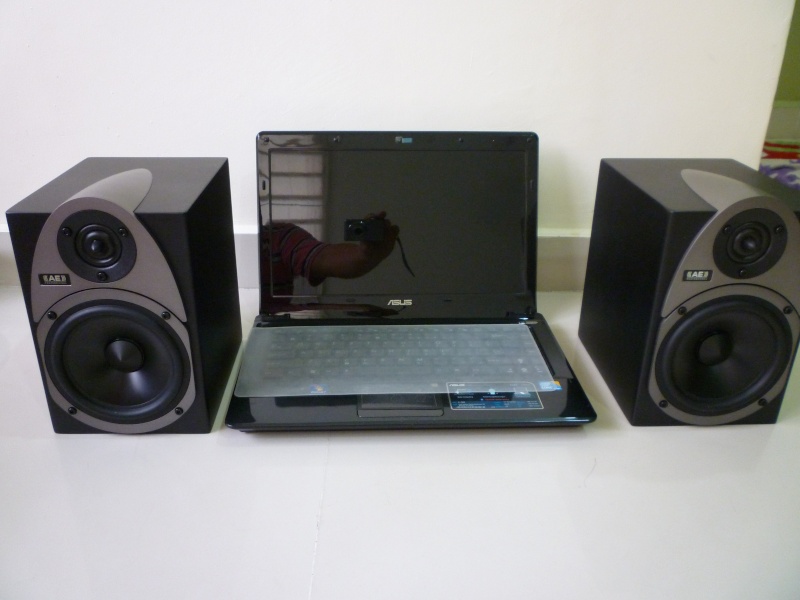

Reference Pic from internet for reference:







User Review for reference :
線材全部接好後===>按下PLAY

出來的第一個聲音................................................................................................整個Orz +囧

我跟坐在旁邊等著試聽的老婆對望了一下

老婆先開口了:這該不會是山寨版的AE喇叭吧!!!

嗯!我頓時間也困惑了,這聲音怎麼這麼緊阿,當下決定先RUN個兩天在看看

當天晚上準備打烊時,進到視聽室準備關機的時候,再度被這對喇叭嚇到

疑??聲音怎麼差這麼多啊!早上那緊到不能在緊的聲音怎麼才不到一天的時間就差這麼多

雖然低頻還是很緊繃,但高音活潑許多

忽然定神一想,因為這對喇叭是主動式的,所以要RUN的不只是單體,連內建的放大電路也要RUN,

可能是這原因才會讓這對小鋼砲在RUN IN過程的前後5分鐘,聲音就有很大的差距

這對喇叭從5月6日到店開始RUN IN到今天,每天都還在變化,不過現在的聲音表現已經可以見人了




Building on the success of the AE22 active and AE22 passive near field monitors.

AE has extended its pro-audio line up with an innovative satellite monitor system.

The AE Pro Sub-Sat system distils AE’s 25-years of award-winning loudspeaker engineering into the company’s most accurate and revealing ultra-compact monitor system to date.

Fully active, the Pro Sub-Sat system can be configured as 2.0/2.1 channel for stereo mastering or as a 5.1 system for the growing multi-channel market.

The AE ProSat is based on a sealed six-litre cabinet, ideal for smaller studios where a full-size monitor would prove intrusive. Voiced to reproduce its most faithful response when positioned on a monitoring desk or using a near-wall mount, each two-way speaker packs dedicated 50Watt and 25Watt amplifiers. Tracing its heritage back to AE’s original AE1, the ProSat features AE’s signature alloy-cone bass/mid driver and a highly linear ring radiator tweeter.

Type:

Active, sealed cabinet, two-way, compact full range monitor

Drivers:

- 130mm aluminum cone LF/MF driver.
- 25mm ring radiator HF driver.

Frequency Response:
- 100Hz to 40kHz ± 3dB

Trims:
- Sensitivity 0db, -3dB, -6dB.
- HF: +2db, 0dB, -2dB.
- LF: Extended, Normal

Amplifiers:
- LF/MF 50 Watts/HF 25 Watts.

Input Sensitivity:

- 300mv for rated output

Dimensions: (H x W x D): 220mm x 150mm x 180mm

Weight: 3kg (single, unpacked)

Mounting: Rubber feet [supplied], Clamp bracket or Ominmount 20.5WB [optional]

Shielded: Yes

Note: New  ,come with power cord,user manual and Box.



Price : RM 2200 (1 Pairs) 2 pcs

Contact Simon Ting : 012-3612507
