Teac AI 503 Integrated Amplifier & Headphone Amp

Go down

Teac AI 503 Integrated Amplifier & Headphone Amp Empty Teac AI 503 Integrated Amplifier & Headphone Amp

Post by on Mon May 28, 2018 1:41 pm

Teac AI 503 Integrated Amplifier & Headphone Amp Brand New. Now Selling At RM5,899. Free Shipping Within West Malaysia.
Please visit [You must be registered and logged in to see this link.] find out more products for sale at very special price...

Teac AI 503 Integrated Amplifier & Headphone Amp ES_teac-ai-503-integrated-amplifier-headphone-amp-2

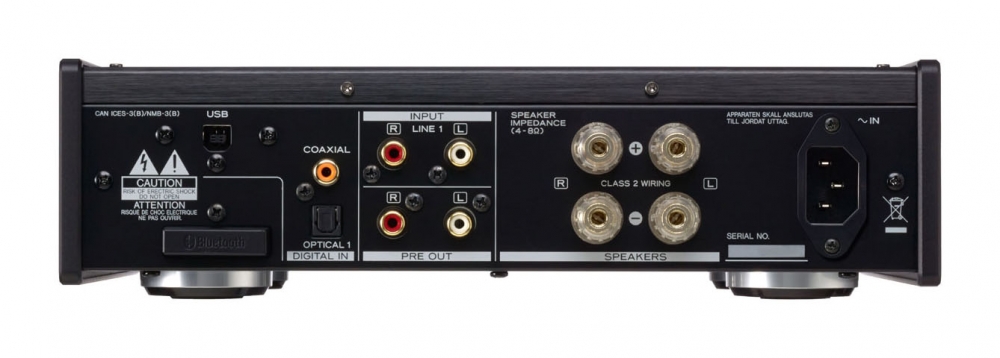

Teac AI 503 Integrated Amplifier & Headphone Amp ES_teac-ai-503-integrated-amplifier-headphone-amp-3


Integrated Amplifier with 192kHz USB Audio Input, Bluetooth Receiver, High Performance DAC and Headphone Amplifier

The AI-503 is an integrated amp and USB DAC that supports inputs up to 11.2MHz DSD and 384kHz/32-bit PCM. The DAC/preamp, which is the heart of the unit, follows the same design concept of our UD-503 and adopts a dual-mono circuit design that is fully balanced. Separate VERITA AK4490 D/A converters - made by Asahi Kasei Microdevices Corporation - are used for the left and right channels. In addition to a USB digital input (for Windows/Mac computers), optical/coaxial digital input and RCA analog input, we have also enabled high-resolution wireless audio listening by including a LDAC-compatible Bluetooth®️ receiver. Furthermore, with a combined 3.5mm optical digital/stereo mini jack on the front panel, the unit supports wired, as well as wireless, input from DAPs.

The power amplifier uses a Class-D power amplifier (made by ICEpower a/s) that guarantees high resolution during the playback of delicate signals as well as high linearity at high volumes. This unit can power both compact bookshelf speakers (for desktop applications) and large floorstanding speakers. The pre-amp section uses a fully-balanced TEAC-QVCS high-precision volume control circuit with a 4-circuit construction. By maintaining detail levels at all resolutions, the AI-503 creates a very realistic soundstage, along with a high signal-to-noise ratio and excellent sense of space. By connecting an external power amplifier to the fitted pre-out jacks, you can upgrade performance and create an even more capable audio system. The headphone amp section uses a discrete TEAC-HCLD circuit, with a push-pull arrangement, allowing it to drive even high-impedance headphones with ease. The two-stage High/Low gain switch enables optimal volume setting for everything from low-impedance in-ear monitors to high-impedance (600Ω) on-ear headphones.

Furthermore, the inclusion of a 3.5mm headphone jack, one that supports a 4-pole separate ground connection, allows excellent channel separation, even when using balanced-type headphones or earphones.

Smart and High-Quality Hi-Fi System Specifications

High-performance VERITA AK4490 DACs support 11.2MHz DSD and 384kHz/32-bit PCM
For the DAC chips, the key to high-performance digital audio, we used the highly-regarded VERITA AK4490* DACs, made by Asahi Kasei Microdevices Corporation. Along with native playback of 11.2MHz DSD signals through direct processing, a wide range of high-resolution audio sources (including 384kHz/32-bit PCM digital input) are supported. These DACs enable the reproduction of the finely etched detail and outstanding sense of stereo placement that are the hallmarks of quality high-definition high-resolution audio sources.*The AK4490 is a member of the Asahi Kasei Microdevices Corporation Audio4proTM family brand of products developed for professional audio devices and high-end digital audio applications.

Dual-mono configuration supports fully-balanced transmission
As well as helping deliver class-leading levels of power, the sophisticated dual-mono configuration also extends to the D/A converter and the preamp. The dual-mono layout incorporates two completely independent mono circuits for the left and right channels. Starting with the high-performance VERITA AK4490 D/A converters, this arrangement provides outstanding isolation between the two channels. The suppression of interference between the left and right channels is particularly important when it comes to headphone listening.

Pre-amp section provides fully balanced transmission and uses TEAC-QVCS high-precision volume control circuit
For the preamp circuit, we have utilized the TEAC-QVCS (Quad Volume Control System), an ingenious circuit with a fully-balanced design. It allows balanced processing of the audio signal at every stage, from immediately after digital-to-analog conversion until the signal reaches the volume amplifier.Control signals, transmitted from the volume knob, simultaneously adjust the variable-gain amplifier-type volume controls of four independent circuits — providing a positive and negative for both the  left and right channels. Using this system, the unnecessary  manipulation of audio signals is eliminated, and the left/right and  positive/negative independence of the audio signals is preserved until a point immediately before the power amplifier, achieving a clear sound quality with outstanding channel separation. (This process only applies to balanced analog inputs).What’s more, "gang errors" (level discrepancies between left and right channels at low volumes), which can be a particular issue during headphone listening, have been completely eliminated, so you can enjoy accurate audio even when using low-impedance in-ear monitors.

Pre-outs can be connected to both power amplifiers and active speakers
The AI-503 can also be used as a high-quality preamp. As the volume from the RCA output jacks can be varied, you can achieve a seriously upgraded audio system simply by connecting a power amplifier to the pre-out jacks. In addition, the unit has a pair of analog RCA input jacks, so you can also connect an analog turntable with a built-in phono EQ amplifier, such as a TN-350 or TN-570, a cassette deck, or other analog equipment.

Built-in 44.1kHz and 48kHz clocks
The AI-503 supports asynchronous transfer mode when connected by USB, allowing it to control PCM and DSD signals by synchronising them with its own clock (generated by a high-precision crystal oscillator) rather than synchronising with a computer clock signal that is invariably unstable and noisy. Two dedicated internal clocks (running at 44.1kHz and 48kHz) are built in. By clocking signals that are a multiple of the clock frequencies to an audio-grade, high-precision crystal oscillator, featuring inherently low phase noise, the damaging effects of jitter on audio quality can be largely suppressed and the audio source can be reproduced more faithfully.

Filter types include 4 PCM and 2 DSD digital filters
Filter types include 4 PCM and an ‘off’ mode , as well as 2 DSD digital filters. You can use the remote control to set the optimal filter, according to the input file format and type of music. You can also change the filter during music playback so that you can fine-tune the audio quality.

PCM Filters
• FIR SHARP: FIR filter with a steep roll-off, used to sharply cut signals outside the audio band
• FIR SLOW: FIR filter with a slow roll-off, used to gently cut signals outside the audio band
• SDLY SHARP: Short delay filter with a steep roll-off, used to sharply cut signals outside the audio band
• SDLY SLOW: Short delay filter with a slow roll-off, used to gently cut signals outside the audio band
DSD filters: CUTOFF at 50kHz, CUTOFF at 150kHz
Note: When receiving signals at 352.8 kHz or 384 kHz, the digital filter will be disabled during playback regardless of this setting.
Class-D power amplifier made by ICEpower a/s
In order to deliver high-quality audio performance, we have incorporated a well-regarded, high-output power amplifier made by ICEpower a/s. This guarantees high-resolution playback of delicate signals as well as excellent linearity at higher output levels. The use of a compact, high-efficiency Class-D power amplifier enables the inclusion of a dual-mono circuit configuration in the DACs (highly beneficial to digital audio) while retaining a small, stylish form-factor.

ICEpower®️ is a registered trademark of Bang & Olufsen ICEpower a/s.
High-capacity toroidal-core power transformers
Power is upplied by efficient toroidal-core power transformers specifically designed to suppress magnetic flux leakage and prevent electromagnetically-induced noise, providing clean and stable current at all times.
Carefully Designed Hardware Accommodates any High-Standard Listening Environment

All-metal enclosure provides both vibration resistance and a stylish appearance in an A4-sized footprint that can be easily accomodated
Since the enclosure is completely made of metal panelwork, which is resistant to external noise, the infiltration of electromagnetic noise generated by computers and other equipment is well-suppressed. This creates an electrically ‘clean’ internal environment with little noise, even in outside environments that offer difficult conditions for audio equipment. The metal chassis also has 8mm-thick aluminum panels on both ends. These features prevent twisting and bending, resulting in a strong and stable body structure. In addition, its footprint, which is the size of an A4 page*, allows it to be placed on tables, sideboards and in other small spaces.
*Not including jacks, knobs and other protruding parts
Dimmable VU Meters for Easy Level Monitoring

Teac AI 503 Integrated Amplifier & Headphone Amp Ai-503_b_meters
Providing a visual indicator of system gain, analog level meters are built into the front of the unit. These meters provide a stylish insight into operating levels of the system and feature a dimmer function which can be set to one of four levels (bright, normal, dim, off), allowing you to adjust the brightness to match the lighting of the room, you can also turn off the operation of the level meters completely.
Headphone amp with a discrete, push-pull circuit
The dedicated headphone amp employs Class AB operation, as well as a discrete push-pull circuit and op amp. We have applied all the expertise we gained during the development of the UD-503 to give this model a circuit design that suppresses noise while maintaining the wide operational range of a Class-A amplifier. The fine details and nuances of your music, as captured in high-resolution audio, are delivered in a natural dimensional manner
The AI-503 headphone circuit design also features completely separated grounding for left and right channels from the amp to the final 4-pole jack. By completely separating the grounding of the left and right channels from the amplifier, channel separation is greatly increased and a much more transparent soundstage achieved.
Note: Earphones and headphones with 3-pole plugs can also be used, but to benefit from separate left/right ground drive, you should use earphones or headphones with 4-pole plugs. Pin assignments are as shown in the illustration below:
Teac AI 503 Integrated Amplifier & Headphone Amp Headphone%20poles
In addition, the headphone amp output features a 2-stage gain-switching function which enables optimal volume setting when listening through anything from low-impedance in-ear monitors to high-impedance 600Ω headphones.

Expertly-Designed User Interface
We pay great attention to each and every control, including an aluminum volume knob with firm torque and toggle switches that provide a sense of satisfying certainty in operation. The dedicated remote controller, which is topped with aluminum alloy, exudes class. We also focused on the operation of the unit itself and so the remote control can be used to adjust volume in steps as small as 0.5 dB.

USB/coaxial/optical digital inputs
The USB input supports resolutions up to 11.2MHz DSD and 384kHz/32-bit PCM. In addtiopn, “DSD native playback” (in which DSD is converted directly to analog without first being converted to PCM) is also supported. On the software side, TEAC HR Audio Player, a free music playback software specifically written for TEAC products, supports ASIO 2.1 and DoP (DSD over PCM) formats, allowing native playback of 11.2MHz DSD audio sources on Windows as well as Mac computers. And finally, optical and coaxial digital inputs support resolutions up to 192kHz/24-bit.

Bluetooth®️ receiver with LDAC support
The onboard Bluetooth®️ receiver supports LDAC* and aptXTM as well as AAC and other wireless transmission of high-quality audio, enabling easy audio streaming from your smartphone or tablet.
*LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a Bluetooth connection. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content1, and allows approximately three times more data2than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
excluding DSD format contents
 in comparison with SBC (Subband Coding) when the bitrate of 990kbps (96/48kHz) or 909kbps (88.2/44.1kHz) is selected

Front panel digital input
The front digital input jack is a convenient way of connecting digital audio players with optical digital and analog outputs. With these connections, music already on your portable device may be enjoyed through speakers or headphones, taking advantage of the audio processing power available within the AI-503
Free TEAC HR Audio Player application
Teac AI 503 Integrated Amplifier & Headphone Amp Hrp_display_03
TEAC HR Audio Player, a free music playback software written specifically for TEAC products, allows native playback of 11.2MHz DSD, 384kHz PCM and other high-resolution music files. With no complex configuration required, the TEAC HR Audio Player may be installed quickly and easily on any Mac or PC.
Note: When using this unit with a Windows computer, you must install the dedicated driver on that computer before connecting the AI-503 via USB
Features at-a-glance

  • DAC with a dual-mono configuration that supports resolutions up to 11.2MHz DSD and 384kHz/32bit PCM
  • Separate VERITA AK4490 D/A converters made by Asahi Kasei Microdevices Corporation used on left and right channels
  • Bluetooth®️ receiver that supports LDAC/Qualcomm®️ aptXTM (as well as AAC and SBC)
  • Filter type can be switched, choosing from 2 DSD digital filters, as well as 4 PCM filters and off mode
  • Two built-in high-precision dedicated clocks for 44.1kHz and 48kHz signals and their multiples (enabled during USB asynchronous transmission)
  • TEAC-QVCS high-precision volume control circuit with fully-balanced structure
  • High-output Class-D power amplifier (made by ICEpower a/s)
  • Headphone amp with discrete, push-pull circuit and a maximum output of 280mW+280mW (TEAC-HCLD circuit)
  • Ground connection supported by 3.5mm 4-pole stereo headphone jack (combined with regular 3.5mm stereo mini type)
  • High-capacity toroidal-core power transformers
  • Pair of RCA analog input jacks
  • Volume-controlled pair of RCA analog output (pre-out) jacks
  • USB/coaxial/optical digital inputs (one each on back panel)
  • Combined round optical digital/3.5mm stereo mini jack (on front panel)
  • Dual analog level meters with adjustable brightness
  • Low-energy consumption design and automatic power-saving function
  • All-metal enclosure provides both vibration resistance and a stylish appearance in an A4-page-sized footprint that can fit on a desk
  • Dedicated remote control included
  • IEC inlet
  • Compliant with RoHS

Maximum Output Power 90W + 90W (4 ohms, 20Hz to 20kHz)
45W + 45W (8 ohms, 20Hz to 20kHz)
Rated Output Power 60W + 60W (4 ohms, 20Hz to 20kHz)
30W + 30W (8 ohms, 20Hz to 20kHz)
Supported Impedance 4 ohms to 8 ohms
Total harmonic distortion 0.05% (1kHz, 4 ohms, 55W)
S/N ratio (input short)
Frequency range 10Hz to 60kHz (−3dB)
Digital audio inputs
COAXIAL RCA jack x 1 (0.5Vp-p/75ohm)
Sampling frequency 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
bit rates 16/24-bits
OPTICAL Optical digital connectors x 2 (−24.0 to −14.5dBm peak)
Sampling frequency 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kH
bit rates 16/24-bits
USB Type B connector x 1 (USB 2.0 compliant)
Sampling frequency 32 kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
bit rates 16/24-bits
Analog audio inputs
RCA RCA jacks x 2pairs
Nominal input level -10dBV
Maximum input level +6dBV
Headphones output
Connector Standard 6.3mm stereo jack
Maximum output level 50mW + 50mW or more (32 ohms, THD+N 0.1%)
Power supply AC120V, 60Hz
Power Consumption 55W
Overall Dimensions 290(W) x 81.2(H) x 264(D) mm,
11.4"(W) x 3.2"(H) x 10.4"(D)
Net Weight 4.0kg
Operating Temerature +5˚C to +35˚C
Operating humidity range 5% to 85% (no condensation)
Storage Temerature: -20˚C to +55˚C
Accessories AC Cable, AC Plug Adapter (3P-2P), Remote Control, AAA Batteries (x2), Owner's Manual

Interested please feel free to contact:

Peter  012-2536225

Fong   016-3098668

Business hour:









Style Online Store 24Hous



No.148, Jalan Cerdas, Taman

Connaught, Cheras 56000 Kuala Lumpur


Teac AI 503 Integrated Amplifier & Headphone Amp Trade

We buy in your old items in CASH!!

Got something keep at home but seldom use or planning to upgrade?

Items that we buy:

BRANDED led tv



cd player

Please Whatsapp the item photo to me and get the price immediately, once confirmed the deal, we will pick up your item from you and pay you in cash.

Please visit [You must be registered and logged in to see this link.] find out more products for sale at very special price..

Thanks for viewing.
