KEF Q60 Dual Concentric Design Stereo Bookshelf Speakers

Post by HiFiLab on Thu Aug 09, 2018 9:23 pm

Made In England

KEF's Uni-Q two-way coincident-source drive unit is incorporated into all three "Q" series models. This unique drive unit combines both tweeter and bass/midrange units into one single chasis. This radical KEF development allows the sound from both units to reach the listener's ears at the same time, bringing readily audible benefits in terms of transparency, image stability and more natural sound reproduction.

Uni-Q speakers are highly versatile in use. Being less affected by differing room acoustics, they will operate well in a wide range of placements and listening positions. Furthermore, an advanced and innovative design feature, unique to KEF ensures that all three Q-Series models share quite exceptionally low levels of cabinet colouration, even at high volumes.


Fast, well controlled bass performance with accurate, detailed, midrange and the capability to play at realistic levels with modest power requirements sums up the remarkable Q60. Designed for stand mounting 400-450 mm (15' - 18') high, a 200 mm (8') Uni-Q bass-midrange unit, with 25 mm (1') NIB magnet tweeter centrally placed, is loaded by a 20 litre reflex enclosure, 18 mm (3/4') thick. Careful bass alignment makes the Q60 tolerant of positioning, with the ability to recreate the life-like three-dimensional qualities of well recorded music in almost any environment.


Type:  2-way bookshelf

System:  SP3136

Drive units:

Bass/midrange unit (SP1280) : 200 mm (8") with 38 mm (1,5") coil (B200)

Tweeter (SP1353) : Polymer dome with 25 mm (1") coil Fluid cooled, High Energy magnet Ne-Fe-B (NT25)

Crossover network:  SP2181

Frequency Range (±3 dB measured at 2m on reference axis):  60 - 20,000 Hz (-6dB 45 Hz)

Maximum Output (measured spl on programme peaks under typical listening conditions):  110 dB

Characteristic Sensitivity level:  90 dB (measured at 1m on reference axis for pink noise input of 2,83V rms[anechoic conditions] Q60 corrected for wall mounting)

Amplifier Requirements (into 8 ohms):  10 - 100 W

Nominal Impedance:  8 ohms

Enclosure Type:  Reflex

Internal Volume:  19,8 litres (0.7 cu.ft.)

Net Weight:  7,2 kg (15,8 lb)

Dimensions (H x W x D):  479 x 246 x 274 mm (18,9 x 9,72 x 10,8 inch)

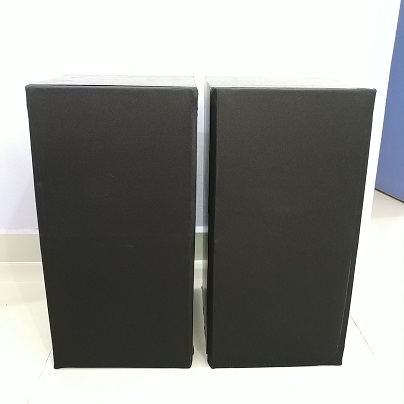

Note : Speaker Grill Is DIY , but this not affect the beautiful sound of this speaker.

Price : RM 1050
Contact Simon Ting : 012-3612507
