Line Magnetic LM-218IA 845 tube amplifier (sold)

Go down

Line Magnetic LM-218IA 845 tube amplifier (sold) Empty Line Magnetic LM-218IA 845 tube amplifier (sold)

Post by leeweichen_chen on Tue Aug 20, 2019 1:46 pm

Line Magnetic Audio LM-218IA Tube 845 Amplifier (used)

Features:
Point to point hand welding circuit.
Twenty-two watts per channel, Single Ended Triode design,
Pure Class A Integrated Stereo Amplifier with 845 output power tubes.
All triode tube Integrated with 12AX7 input tubes for voltage
amplification, 6P6P driver tubes and 845 output tubes.
Driver tubes 6P6P can also be replaced by EL34, KT88, 6550,
or 6V6 and you can select which tubes you prefer judging by different sounds.
4 pairs of inputs and speaker terminals for 4, 8 and 16 ohm speakers
are located on the back panel.
User bias control has been used for bias adjustment and one meter has
been added to the front plate to allow you to monitor bias with ease.
Specially designed toroid transformers for power supply and two EI output
transformers with wide bandwidth are applied.
Japanese Audio grade ALPS volume potentiometer has been applied.
Standard with remote control.
Hand made construction with the finest point-to-point wiring.
SoftStart and time-delay circuit. (30 seconds).


Specification
Power output:22W + 22W
Frequency response:10Hz to 50kHz(-1.5dB)
THD:1%(1kHz)
S/N Ratio:87dB
Input Sensitivity:200mV
Input Impedance:100kΩ
Output Impedance:4Ω ,8Ω ,16Ω
Dimension (WxDxH): (380 x 400 x 275)mm
Vacuum Tube:12AX7 x2, 6P6P x2, 845 x2
Net Weight:35.2kg
Power Consumption:320W

Condition: 8/10
Remote: yes
Without box
Price: sold (RM 3500)  23/10/2019

Please call LEE 0122083669

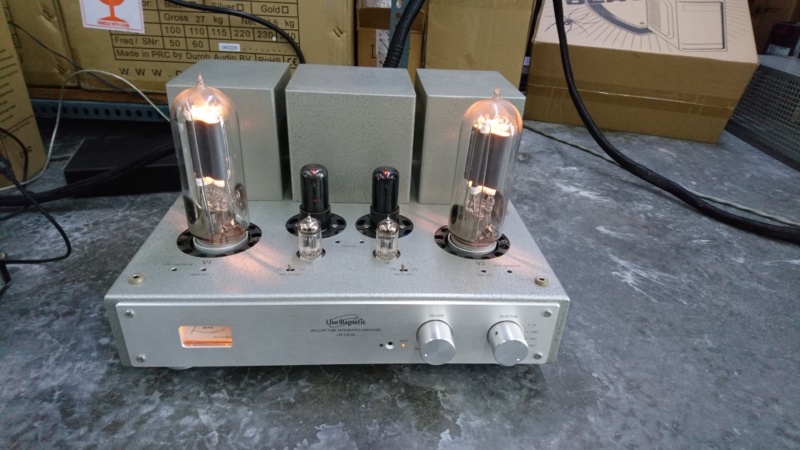

Line Magnetic LM-218IA 845 tube amplifier (sold) Dsc_0611


Last edited by leeweichen_chen on Fri Oct 25, 2019 8:20 pm; edited 2 times in total (Reason for editing : Sold at rm3500 (23/10/2019))
