Post by raymond88 Sun Apr 03, 2022 12:42 pm

Item: RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control

Condition: Item is in excellent working condition. Just been fully serviced by a well-known technician. Also is in pristine physical condition.  Comes with remote control. Built like a tank and weights over 22kgs!

Price: RM3300 or swap/topup
Can Trade-In your Amplifier/
CD Player/Speakers/Etc


Contact: 012-3816611

Wasap.my/60123816611

RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon319

Description :

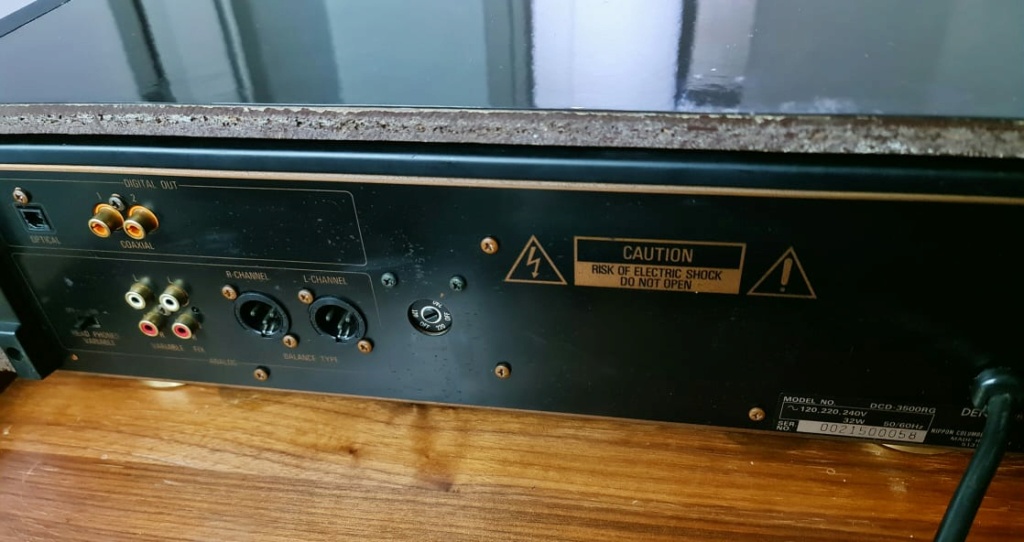

The Denon DCD-3500RG is a beautifully lacquered wood finished cd player with a champagne golden front panel which consists of the necessary functions. It consists of a display that shows the track number, index and time, and a CD tray on the left of it. On the back of the player, it allows various types of connections including an optical digital output, two coaxial digital outputs, analog RCA and two balanced type XLR for left and right channels. There is also a small switch for headphones variable. The chassis of the Denon DCD-3500RG is divided near the center into two parts, one is largely taken up by the CD tray and the other is the printed circuit board. The intention behind the formation is to reduce the interference caused by the vibration of mechanical parts and improving the sound quality.

Specifications :
Digital Output Signal
Format............................................Digital Audio Interface
Coaxial Output Voltage.....................0.5Vp-p75 ohms
Optical Power..................................-15dBm to 21dBm
Emission Wavelength.......................660nm
Pickup
Method...........................................Three-beam method
Lens Drive System...........................Two-dimensional parallel drive
Light Reader....................................Semiconductor laser
Wavelength.....................................780nm
General
Number Of Channels........................2
Wow And Flutter..............................Lesser than measurement limit (W.peak +/- 0.001%)
Disc Diameter..................................120/80 mm
Sampling Frequency........................44.1kHz
Quantization....................................16 bit linear per channel
Transmission Bit Rate......................4.3218Mbps

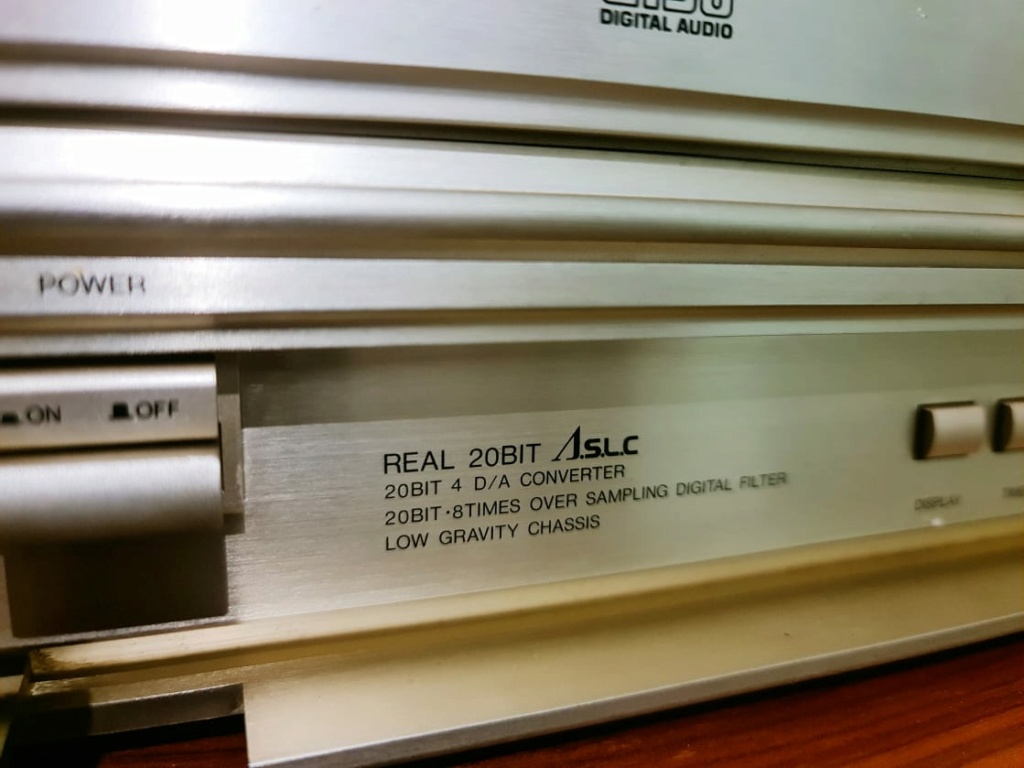

Digital-to-Analog Conversion..............20bit real super linear converter.
                                         .............Lambda method (4D / A converter)
Filter...............................................8 times oversampling digital filter
Frequency Response.......................2Hz to 20kHz
Signal-to-Noise Ratio........................20dB
Dynamic Range...............................100dB
Total Harmonic Distortion..................0.0015% (1kHz)
Channel Separation..........................110dB
Phase Difference Between Channels..Within 3 degrees
Output Voltage.................................Fixed: 2V (load 10k ohms)
                     ..................................Equilibrium 1V (when load 600 ohms)
                     ..................................Adjustable: 0 to 2 V (load 10k ohms)
Power..............................................AC 100V, 50/60 Hz
Power Consumption.........................24 watts
Headphone Jack..............................Maximum output 80mW (32 ohm load),
                        ..............................with Vol (also used as an adjustable output Line)
Dimensions(w x d x h)......................48 x 39.5 x 15cm
Weight............................................21kg


RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon321

RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon322

RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon320

RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon324

RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon325

RARE: Denon DCD-3500RG PCM Audio Technology CD Player with Remote Control Denon323

Website:

https://reverb.com/item/39405739-denon-dcd-3500rg-pcm-audio-technology-compact-disc-player-in-vg

http://www.listeninn.com/product/407001-11429/Cd+Player/Denon+DCD-3500RG


SEE ALL MY AVAILABLE ITEMS HERE:



https://www.carousell.com.my/u/hifijunction/
https://www.carousell.com.my/u/hifijunction/
https://www.carousell.com.my/u/hifijunction/

Thank you
