Celestion Ditton 15XR Vintage Audiophile Speakers (Sold)

Go down

Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) Empty Celestion Ditton 15XR Vintage Audiophile Speakers (Sold)

Post by 1stopbuysell@gmail.com Mon Dec 19, 2022 11:20 pm

Celestion Ditton 15 XR Vintage Audiophile Speakers (Used)


The completely new Ditton 15XR is a sophisticated bookshelf loudspeaker system using all new components but drawing on the valuable experience gained with the world renowed Ditton 15. the design of "compact" or bookshelf loudspeakers demands the solution of special problems if proper bass reproduction is to be obtained. With the introduction of the highly successful Ditton 15, Celestion perfected a principle now universally known as the ABR. This device has a rigid diaphragm with linear roll neoprene suspension. Its motional mass is precisely calculated and acoustically coupled within the hermetically sealed enclosure. When signals are applied to the main bass drive unit the tuning is such that the ABR is in phase through a frequency band in the region of 60 Hz down to 30 Hz.

That the ABR confers substantial benefits perticularly where the enclosure dimensions have been limited, as in the Ditton 15XR, has been endorsed repeatedly by the technical Press. In addition to extending bass response downwards, giving a more realistic musical balance, and intrinsic function of the ABR is to reduce the required excursion of the main bass unit, thereby further reducing harmonic and doppler distortion. Both power handling and efficiency are also improved, resulting in increased dynamic range and therefore greater musical realism.

Generally
  • Manufacturer: Rola Celestion LTD
  • Model: Ditton 15XR
  • Years of construction: from 1977
  • Manufactured in: Ipswich Suffolk made in England
  • Colour: wooden case
  • Dimensions (W/H/D): 250 x 560 x 240 mm
  • Weight: 8.2kg
  • Original price approx.:

Technical specifications
  • Design: 2-way, closed
  • Chassis:
    • Woofer: 1 × 200mm
    • Passive radiator: 1 × 200 mm ABR passive bass radiator
    • Tweeter: 1 × 30mm HD-1000


  • Load capacity (nominal/pulse range): 60 W sine
  • Efficiency: 90 dB at 2.83 V and 1 m
  • Frequency response: 30 - 28,000 Hz
  • Transition ranges (crossover crossover frequency): 2400 Hz
  • Impedance: 8 ohms


https://www.usedvictoria.com/classified-ad/36290504/photos?i=0

Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 94995053_934

https://stereonomono.blogspot.com/2016/06/celestion-ditton-15xr.html

https://www.hifi-wiki.de/index.php/Celestion_Ditton_15_XR
https://tw.carousell.com/p/%E7%B6%93%E5%85%B8%E7%9A%84-%E8%8B%B1%E5%9C%8B-celestion-ditton-15-xr-%E6%9B%B8%E6%9E%B6%E5%96%87%E5%8F%AD-%E8%81%BD%E9%9F%B3%E6%A8%82-%E7%9C%8B%E9%9B%BB%E5%BD%B1%E7%9A%84%E5%A5%BD%E5%96%87%E5%8F%AD-%E4%BF%9D%E5%AD%98%E5%BE%97%E5%BE%88%E5%A5%BD-%E8%8B%B1%E5%9C%8B%E8%A3%BD%E9%80%A0-1133256086/
carousell.com Taiwan selling NT$16,800 (12 months ago)


https://www.fryderykdanielczykstore.com/en/product/celestion-ditton-15-xr-loudspeakers-classic-vintage-fully-revitalized/
€918.00




Nice pair of British 2 ways with an 8 inch driver and passive radiator for bass loading. Finished in beautiful real oak.
Well preserved in excellent condition.
Suit amps 15 - 40W 53.5 x 23.5 x 24cm
Made in England
* without speakers grill



Location : Puchong
Price : sold


Interested please contact :
Mr.Chia 013-338 0628 ( Whatsapp/Call )

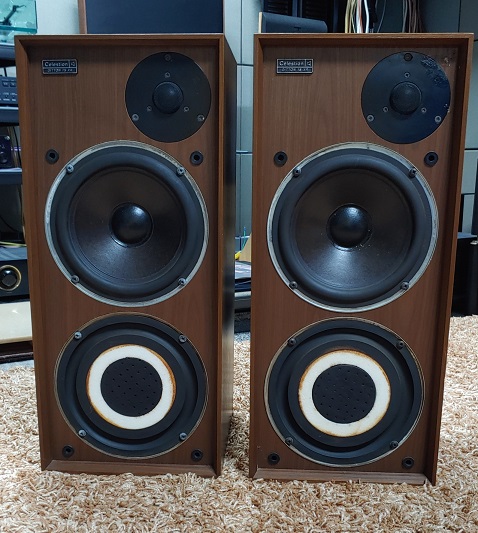

Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 20221210
Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 20221211
Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 20221212
Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 20221213
Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 20221214
Celestion Ditton 15XR Vintage Audiophile Speakers (Sold) 20221215
