Toshiba SB300 Intergrated Amplifier sold

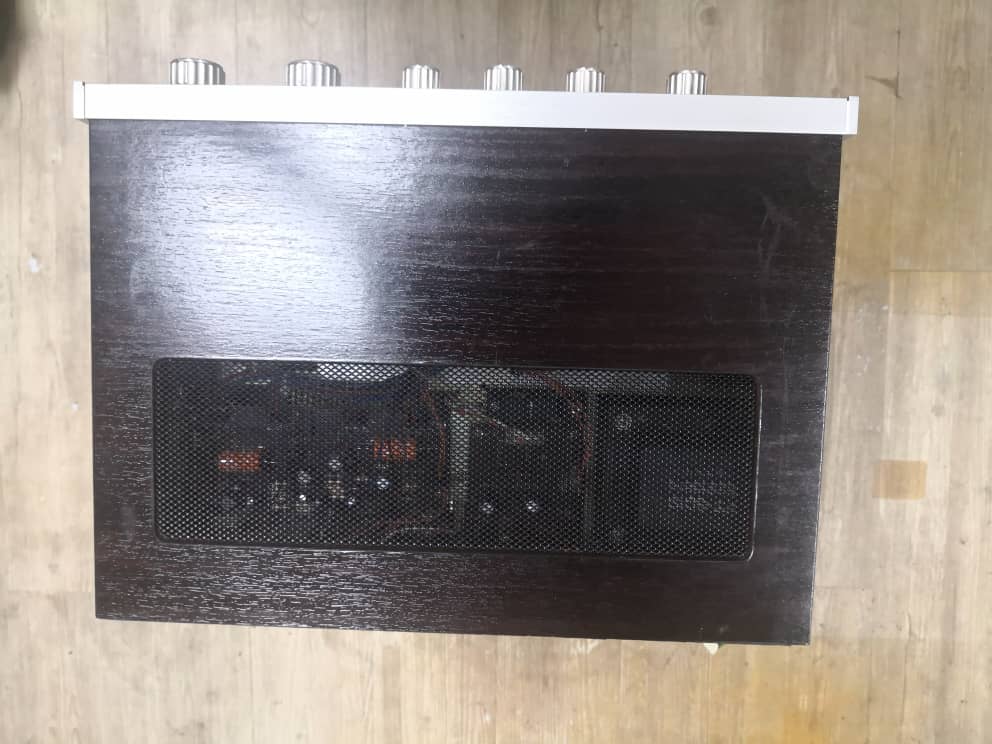

Toshiba SB300 Intergrated Amplifier

** No Remote/ No Box **

Note: Item is in excellent working condition. Have been fully serviced and recapped by technician

Condition: 8/10 Still Working
Prices: RM650/= Negotiable
Calls or Whatsapp: 0174365998
Location: Penang
Postage can be arrange.
Thanks for viewing.

https://www.hifiengine.com/manual_library/toshiba/sb-300.shtml

https://www.hifishark.com/model/toshiba-sb-300

General

Manufacturer: Toshiba
Model: SB-300
Type: Integrated amplifier
Years of manufacture: 1973 - 1976
Made in: Japan
Color: front silver, cabinet wood
Remote control: no
Power consumption: 70 W max.
Dimensions: 400 x 115 x 290 mm (WxHxD)
Weight: 6.5 kg
Original price approx.: 728 DM

Connections

Number of inputs:
Phono MM 1, 2: 3 mV / 47 kOhm, max. 150 mV.
Microphone: 4 mV / 50 kOhm
AUX 1, 2: 150 mV / 50 kOhm
Tape Play: 250 mV / 50 kOhm
Tape Play DIN: 250 mV / 50 kOhm

Antenna FM (75/300 Ohm), AM
Number of outputs:
Tape Rec: 250 mV, 50 kOhm
Tape Rec DIN: 30 mV, 50 kOhm
Headphones (6.3 mm jack)
2 pairs of loudspeakers

Technical Data

Continuous power:
8 Ohm: 2x 17 W
4 Ohm: 2x 20 W

Dynamic power
8 Ohm: 40 W
4 Ohm: 52 W
Total harmonic distortion: 0.8
Attenuation factor: 20 (8 Ohm)
Frequency response:
Phono RIAA: 20 - 20'000 Hz, ± 0,8 dB
High Level: 20 - 30'000 Hz, + 1 dB, - 3 dB
Signal to noise ratio:
Phono MM: 65 dB
AUX, Tape: 75 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz

Loudness: yes, + 10 dB at 100 Hz, + 4 dB at 10 kHz
High Filter:
Low Filter (Subsonic):
Muting:
