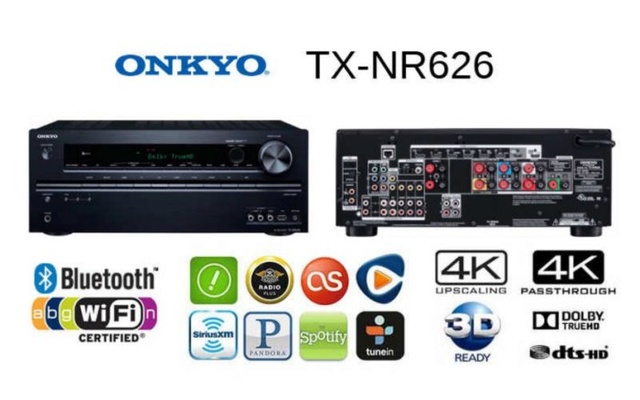

Onkyo TX-NR626 7.2Ch Network AV Receiver (Sold Out)

Post by on Tue Mar 20, 2018 5:16 pm

Onkyo TX-NR626 7.2Ch Network AV Receiver Used In Excellent Condition.Now Selling At RM1,650. Free Shipping Within West Malaysia.
Please visit to find out more products for sale at very special price...

7.2-Channel Network A/V Receiver

Key Features

  • Wi-Fi and Bluetooth Streaming Technology
  • Music Streaming and Internet Radio Services
  • Supports 4K Video Content, 4K Upscaling with Qdeo™️
  • Hassle-Free Video Switching
  • Multi-Zone Audio and Bi-Amping Capability

A Winning Combination for Music and Movie Fans
Our TX-NR626 delivers a knockout punch of value and performance. On the value side, you get built-in Wi-Fi and Bluetooth audio streaming technology. You can stream hi-res, lossless, and compressed formats from smartphone, tablet, PC, and NAS using our remote app for music selection and playback. The receiver also comes with app-controllable internet radio and music streaming services, so you’ll never be short of music. On the performance side, six HDMI®️ inputs and two outputs support 4K and 3D passthrough, with lower-resolution video upscaled to 1080p on regular HDTVs (4K on compatible displays) using Qdeo™️ processing technology. An MHL™️ port handles hi-res video from smartphone and tablet, and there’s a USB for audio playback from flash memory drive. Discrete WRAT amplifiers and Three-Stage Inverted Darlington Circuitry for the front and center channels deliver breathtaking surround sound, while MultEQ®️ from Audyssey ensures your speakers and subwoofers are calibrated for optimum response. You can even bi-amp your front monitors and drive audio in a second zone. Powerful, easy to use, and packed with convenient technology, the TX-NR626 is unbeatable at this pricepoint.

Onkyo TX-NR626 Specs

ChannelsAll: 115 W (6 Ω, 1 kHz, 0.7%, 2-channel driven)
No. of Channels7.2
Power WattsPer Channel: 95 W (8 Ω 20 Hz to 20 kHz, 0.08%, 2-channel driven, FTC)
FrontL/R: 95 W (8 Ω, 20 Hz to 20 kHz, 0.08%, 2-channel driven, FTC)
115 W (6 Ω, 1 kHz, 0.7% THD, 2-channel driven)
Center95 W (8 Ω, 20 Hz to 20 kHz, 0.08%, 2-channel driven, FTC)
115 W (6 Ω, 1 kHz, 0.7% THD, 2-channel driven)
SurroundSurround L/R:
95 W (8 Ω, 20 Hz to 20 kHz, 0.08%, 2-channel driven, FTC)
115 W (6 Ω, 1 kHz, 0.7% THD, 2-channel driven)
Surround Back L/R:
95 W (8 Ω, 20 Hz to 20 kHz, 0.08%, 2-channel driven, FTC)
115 W (6 Ω, 1 kHz, 0.7% THD, 2-channel driven)
Dynamic Power240 W (3 Ω, front)
210 W (4 Ω, 1 front)
120 W (8 Ω, front)
Circuitry3-Stage Inverted Darlington Circuitry: Front & center channel
Total Harmonic Distortion/Noise0.08% (20 Hz to 20 kHz, half power)
Damping Factor60 (front, 1 kHz, 8 Ω)
Input Sensitivity/Impedance200 mV/47 k Ω (line)
2.5 mV/47 k Ω (line)
Output Level and ImpedanceRated RCA: 200 mV/2.2 k Ω (Rec out)
Maximum RCA: 2.0 V/2.2 k Ω (line out)
Phono Overload70 mV (MM, 1 kHz, 0.5%)
Frequency Response5 Hz to 100 kHz/+1 dB, -3 dB (DSP bypass)
Tone Control±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal to Noise Ratio106 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance6 to16 Ω

Video1 Vpp/75 Ω (component)
0.7 Vpp/75 Ω (component PB/CB, PR/CR)
1 Vpp/75 Ω (composite)
Component Video Frequency Response5 Hz to 100 MHz, -3dB

Tuning Frequency RangeFM: 87.5 MHz to 107.9 MHz
AM: 530 kHz to 1,710 kHz
FM/AM Preset Memory: 40 stations

Dolby / DTS DecodingTrue HD, DD Plus, PLIIz
DTS-HD Master Audio
DAC192K/24-bit DACs (Burr-Brown)

Audio I/O6/0
Digital Audio InputOPT/COAX: 1/2
CompositeI/O: 5/1
Component VideoI/O: 1/1
Front ConnectorA/V: L/R/V
USB Input (Sender)Rear
Up-ConversionAnalog to HDMI: From 480i/576i
Upscaling1080p: Marvell Qdeo
4K (up to 4096 x 2160): Marvell Qdeo
Preview OutputAnalog: 2 x Subwoofer
Application SupportSupports Onkyo Remote App: iPod touch/iPhone and Android-powered devices
Internet Radio SupportedPandora, Spotify, Rhapsody, Sirius/XM, Slacker,, Aupeo!, TuneIn
Audio StreamingFrom PC/Network: DLNA, Home Media

OSDOSD Out: DLNA, Home Media

Power Supply120 VAC, 60 Hz
Power Requirement6.3 A
Power ConsumptionNo-Sound: 85 W
Standby: 0.15 W
Dimensions (W x H x D)17.12 x 6.81 x 12.93" (434.84 x 172.97 x 328.42 mm)
Weight21.6 lb (9.7 kg)

[th]Packaging Info[/th]
Package Weight26.0 lb
Box Dimensions (LxWxH)22.0 x 17.0 x 11.5"
Interested please feel free to contact:

Peter  012-2536225

Fong   016-3098668

Business hour:









Style Online Store 24Hous



No.148, Jalan Cerdas, Taman

Connaught, Cheras 56000 Kuala Lumpur


We buy in your old items in CASH!!

Got something keep at home but seldom use or planning to upgrade?

Items that we buy:

BRANDED led tv



cd player

Please Whatsapp the item photo to me and get the price immediately, once confirmed the deal, we will pick up your item from you and pay you in cash.

Please visit to find out more products for sale at very special price..

Thanks for viewing.
