B&W DS6 THX Dipole Surround Loudspeaker System

Go down

B&W DS6 THX Dipole Surround Loudspeaker System Empty B&W DS6 THX Dipole Surround Loudspeaker System

Post by raymond88 Thu Sep 30, 2021 9:00 pm

Item: B&W DS6 THX Dipole Surround Loudspeaker System

Condition: New Old Stock. In original box and packaging.

Price: RM1600 or swap/topup
Can Trade-In your Amplifier/
CD Player/Speakers/Etc

Contact: 012-3816611


B&W DS6 THX Dipole Surround Loudspeaker System Bw112

B&W DS6 THX Dipole Surround Loudspeaker System Bw212

B&W DS6 THX Dipole Surround Loudspeaker System Bw311

B&W DS6 THX Dipole Surround Loudspeaker System Bw411

B&W DS6 THX Dipole Surround Loudspeaker System Bw511

B&W DS6 THX Dipole Surround Loudspeaker System Bw610

B&W DS6 THX Dipole Surround Loudspeaker System Bw710

B&W DS6 THX Dipole Surround Loudspeaker System Bw810

The DS6 is a versatile and compact on-wall surround speaker that is adaptable to a wide range of home theatre applications.

Surround speakers generally fall into two main types - those that one might describe as 'normal' speakers - so-called monopoles, where the sound comes from a set of drive units mounted on the front of the enclosure - and those that give a more diffuse sound field, such as dipoles. Each type has its advantages.

Most multi-channel music is recorded with home entertainment in mind and is generally monitored using two,three or four monopole surround speakers. This enables good location of side and rear images.

Conversely, most films are originally balanced for cinemas, where a large number of speakers spread around theauditorium are used to create the surround sound field. With more surround speakers than discrete channels of information, a less precise image is created that gives an all-enveloping effect. Dipoles, rather than monopoles are better at recreating this type of sound field in the home, while using fewer speakers to do it. Dipoles do not image as precisely as monopoles, but they can make it easier to balance the whole system for a larger listening area.

The DS6 offers a choice of both monopole and dipole operation, so you may choose whichever type of operation best suits the conditions of the listening room, the size of audience and the type of programme being played. Indeed, you may use different modes for side and rear speakers, or change the characteristic for different types of programme.

Technical Specifications : DS6
Description2-way closed-box selectable dipole/monopole surround system
DimensionsHeight: 249mm (9.8 in)
Width: 380mm (15 in)
Depth: 153mm (6 in)
Net Weight5.2kg (11.5 lb)
Freq. Response85Hz – 22kHz ±3dB on reference axis (monopole mode)
85Hz – 10kHz ±3dB power averaged over front hemisphere (dipole mode)
Freq. Range-6dB at 63Hz and 42kHz (monopole mode)
-6dB at 63Hz and 15kHz (dipole mode)
Sensitivity89dB spl (2.83V, 1m)
Normal Impedance8 (minimum 3.3)
Power Handling25W Р100W into 8 on unclipped programme

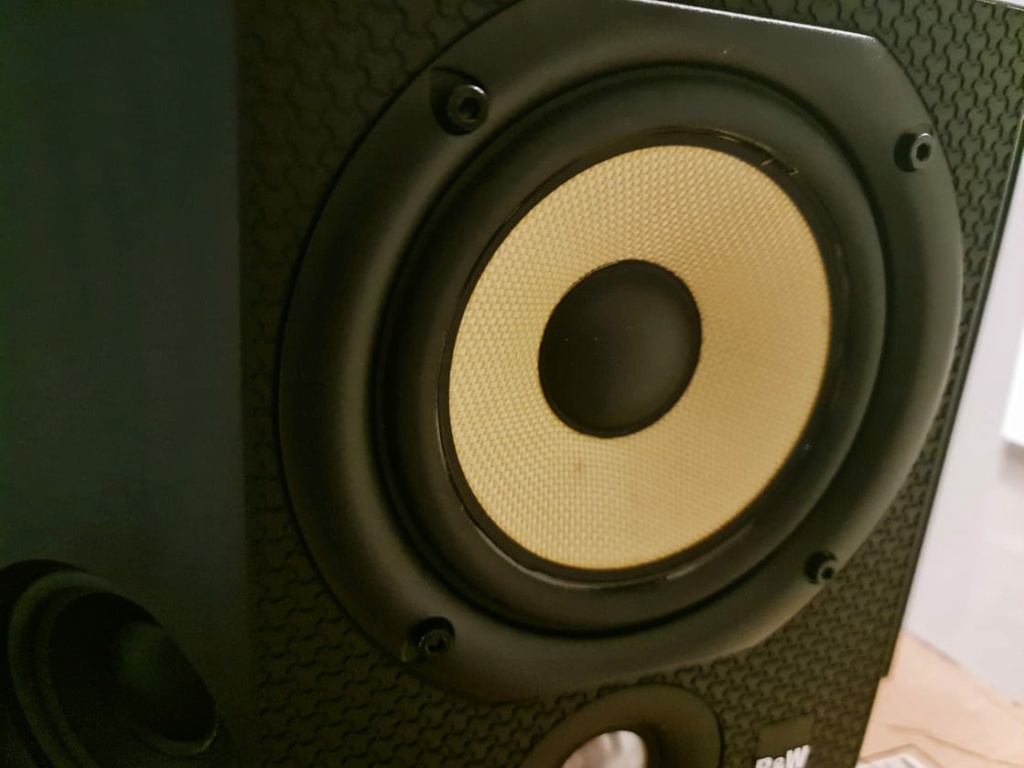

Drive UnitsUnit 1: ø130mm (5 in) woven KevlarB&W DS6 THX Dipole Surround Loudspeaker System 00ae.png?v=2.2 cone bass / midrange
Unit 2: 2x ø80mm (3 in) midrange / high frequency
Unit 3: ø25mm (1 in) alloy dome high-frequency
FinishCabinet: Black or white
Grille: Black or white cloth
DispersionDescription: Dipole mode: horizontalfigure of eight
Effective null zone ±20º (250Hz – 15kHz)
Monopole mode: within 2dB of reference response
Horizontal: over 40º arc
Vertical: over 10º arc
Harmonic Distortion2nd and 3rd harmonics (90dB, 1m)
<1% 130Hz – 20kHz
Crossover Frequency250Hz (dipole mode)
4kHz (monopole mode)
