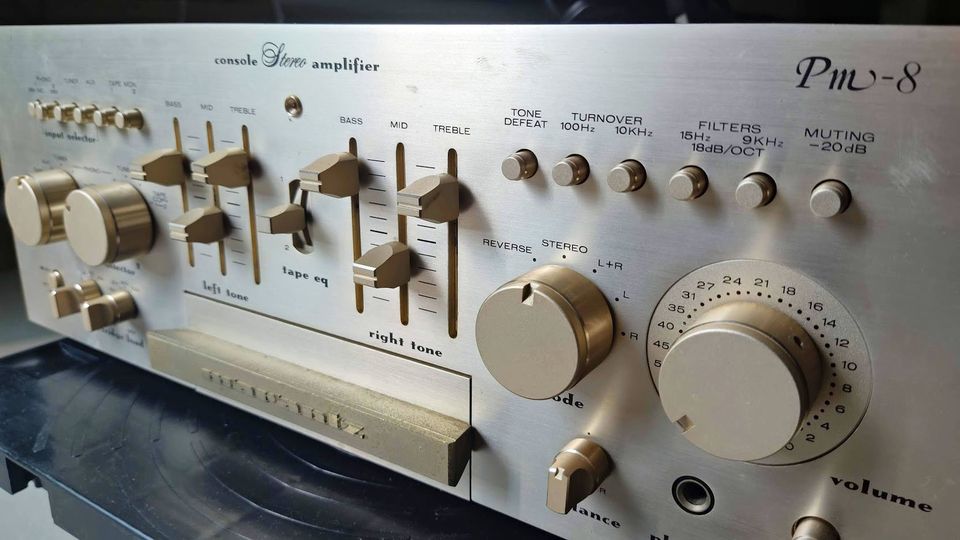

RARE 1979 Vintage Marantz PM-8 console stereo amplifier

RM 10,800.00

A DC pre-main amplifier that pursues a low-TIM design not only for the power amplifier but also for the control amplifier. A 3-stage direct SEPP output type is used for the equalizer stage. In addition, it has excellent low-noise characteristics, and Marantz special order FET with almost perfect matching of pair characteristics in thermal and electrical characteristics is used to obtain excellent SN ratio. Also, the equalizer element is carefully selected to have good characteristics, and the RIAA characteristic is ± 0.2 dB.

ref:-- https://audio-database.com/MARANTZ/amp/pm-8-e.html

-------------------------------

Type : Stereo pre-main amplifier Rated output(20 Hz to 20 kHz, both channel drive) : 150W + 150W (8 Ω) :190W + 190W (4 Ω) Output bandwidth: 5 Hz ~ 100 kHz (8 Ω load, THD 0.05%) Total harmonic distortion factor: 0.01% or Less (20 Hz ~ 20 kHz, 8 Ω Load) Cross modulation distortion factor : 0.01% or less Frequency characteristic :+ 0, -0.2 dB (20 Hz to 20 kHz) :5 Hz to 100 kHz (+ 0, -1dB) Damping factor :100 or More (8 Ω Load) Input Sensitivity / Impedance :Main amplifier input : 1.5V/80k Ω :phono1, phono2 mm : 2mV/1k Ω, 10k Ω, 27k Ω, 47k Ω, 100k Ω :phono2 mc : 200 μ V/10 Ω, 47 Ω, 100 Ω, 200 Ω :High Level : 150mV/40k Ω Rated Output / Impedance:- PRE OUT : 1.5V/100 Ω :TAPE OUT : 150mV/250 Ω RIAA deviation:± 0.2 dB (20 Hz to 20 kHz) Input equalization noise:0.24 μ V (phono / IFF-A) Dynamic range:120dB(phono) Tone control characteristics : ± 10 dB (Low Frequency 100 Hz) :± 6 dB (Mid Range 800 Hz) :± 10 dB (high frequency 10 kHz) Filter characteristics :High:9kHz/18dBoct. :Low:15Hz/18dBoct. Power consumption :Maximum output : 850W, :Electrical Appliance and Material Control Law : 400W Power: 100 V, 50/60Hz External dimensions :Width 416x Height 146x Depth 437 mm Weight : 26kg made-in-Japan




interest pls whatsapp 017-881 683 (LYE)!
