Recap for Mainboard [1541 version]

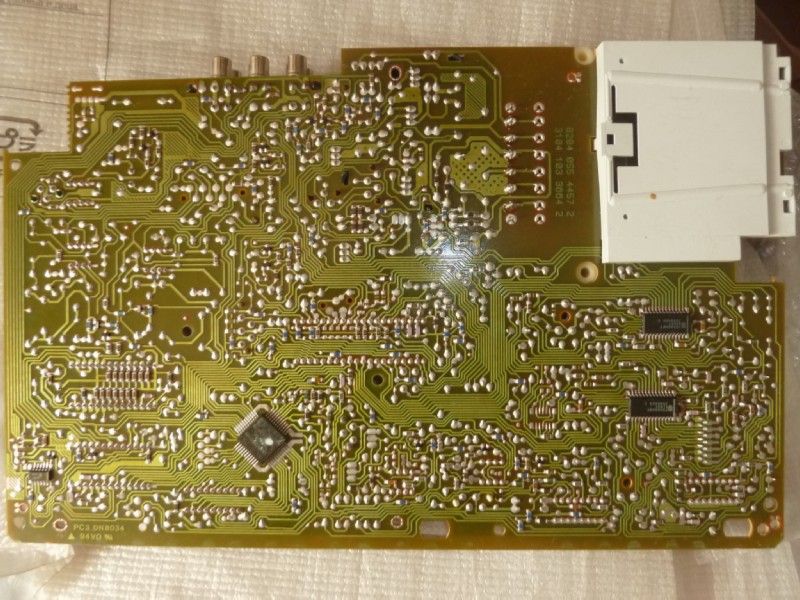

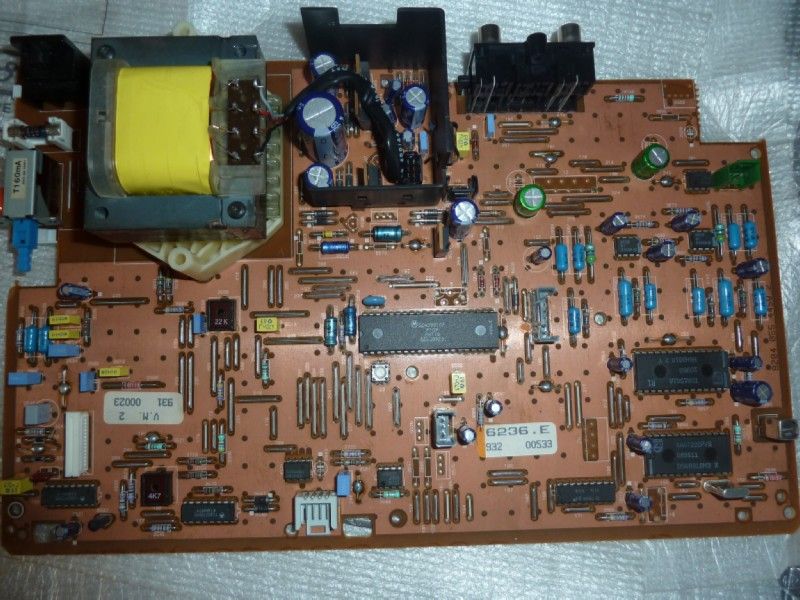

These are the 1541 Mainboard [CD820] top side and bottom site in their original condition. Marantz CD40/50/60 use the same one too.
.....will be updating with some picture once after i have done the recap process,each caps is "tailored" for specific application and purposes. Like usual Naim`s trait, more boogie faktor, less fatique.
Re: Recap for Mainboard [1541 version]

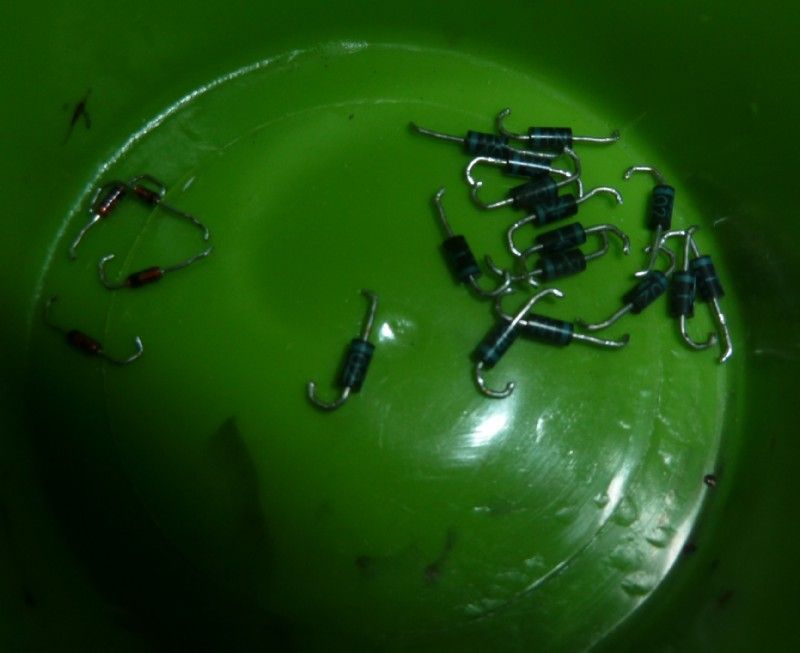

These are the original diodes extracted from the board,they are replaced by the bobbin type..Fast switching!
Diodes upgrade are optional,a very good exercise to your soldering/sucking skill. Shaky hand may breaking the tracks/joint.
Re: Recap for Mainboard [1541 version]

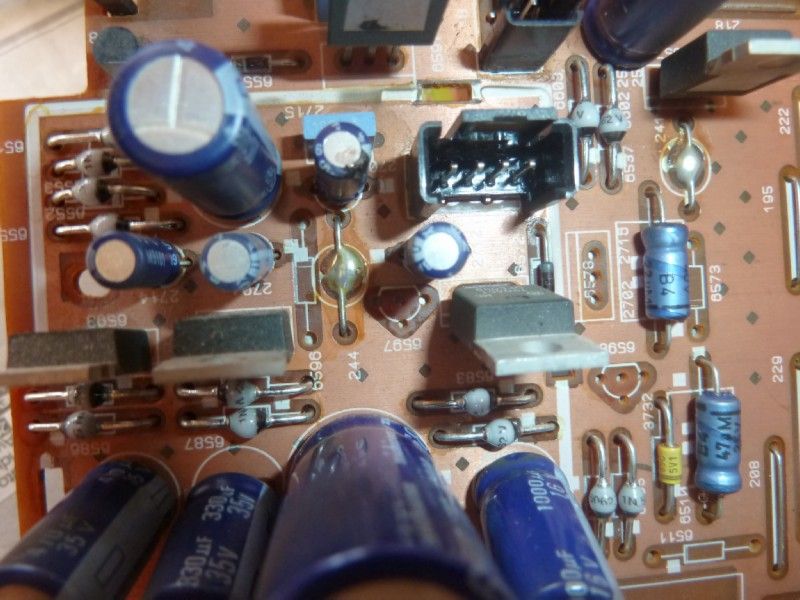

As you can see, the board has recapped with various type of chosen "First league" army, they are very important,they are chosen to do very specific task,not a cross trained type.
After completed the recapping process, the soundstaging has improved 100%.It is like improving from previous 2D to present 3D.
makk ai..,i cant stop spinning CDs although dah buka puasa[waktu mahgrib].
Upgraded till now.[may already beaten up the CD880 perharps CD94]
-Fuse,IEC socket,Decoupling,NOS & Recapped.
Phase 1
-Rolling with Various OpAmps / Output RCA socket upgrade
Phase 2.
-Overhaul the clocking.
Phase 3- Overhaul Powersupply
Phase 4- Tubeezator.
Phase 5- End of Game.
